Lightweight and Precision Carbon Fiber Components for Medical Equipment Applications.
Drawing-led carbon fiber structures for medical equipment, inspection systems and precision instruments.
Precision structures for medical equipment
01 / Overview
Precision structures for medical equipment
Low mass, stiffness and dimensional stability can be valuable in selected medical equipment, diagnostic systems and precision instruments. Carbon fiber panels, tubes and CNC parts allow structural layouts to be reviewed around the equipment geometry.
TX COMPOSITE manufactures from customer drawings and dimensional requirements. No claim is made for medical grade, FDA approval, biocompatibility, sterility, MRI compatibility or X-ray transparency without verified material data and certification.
02 / Material logic
Why carbon fiber for selected medical equipment structures?
The material can support light, rigid equipment structures when its laminate, joints and surface requirements are reviewed for the application.
Lightweight
Reduced component mass can simplify handling and positioning.
High rigidity
Panels and tubes can resist bending in support structures.
Dimensional stability
Stable interfaces support instruments and positioning equipment.
Corrosion resistance
Composite laminates do not rust.
Precision machining
CNC processing creates defined contours and holes.
Custom dimensions
Parts are reviewed against equipment geometry.
03 / Applications
Medical equipment application directions
General structural directions requiring application-specific review, not medical certification claims.
Equipment structures
Lightweight frames and panels for technical equipment.
- Medical equipment structural panels
- Equipment frames
- Lightweight support structures
- Custom mounting plates

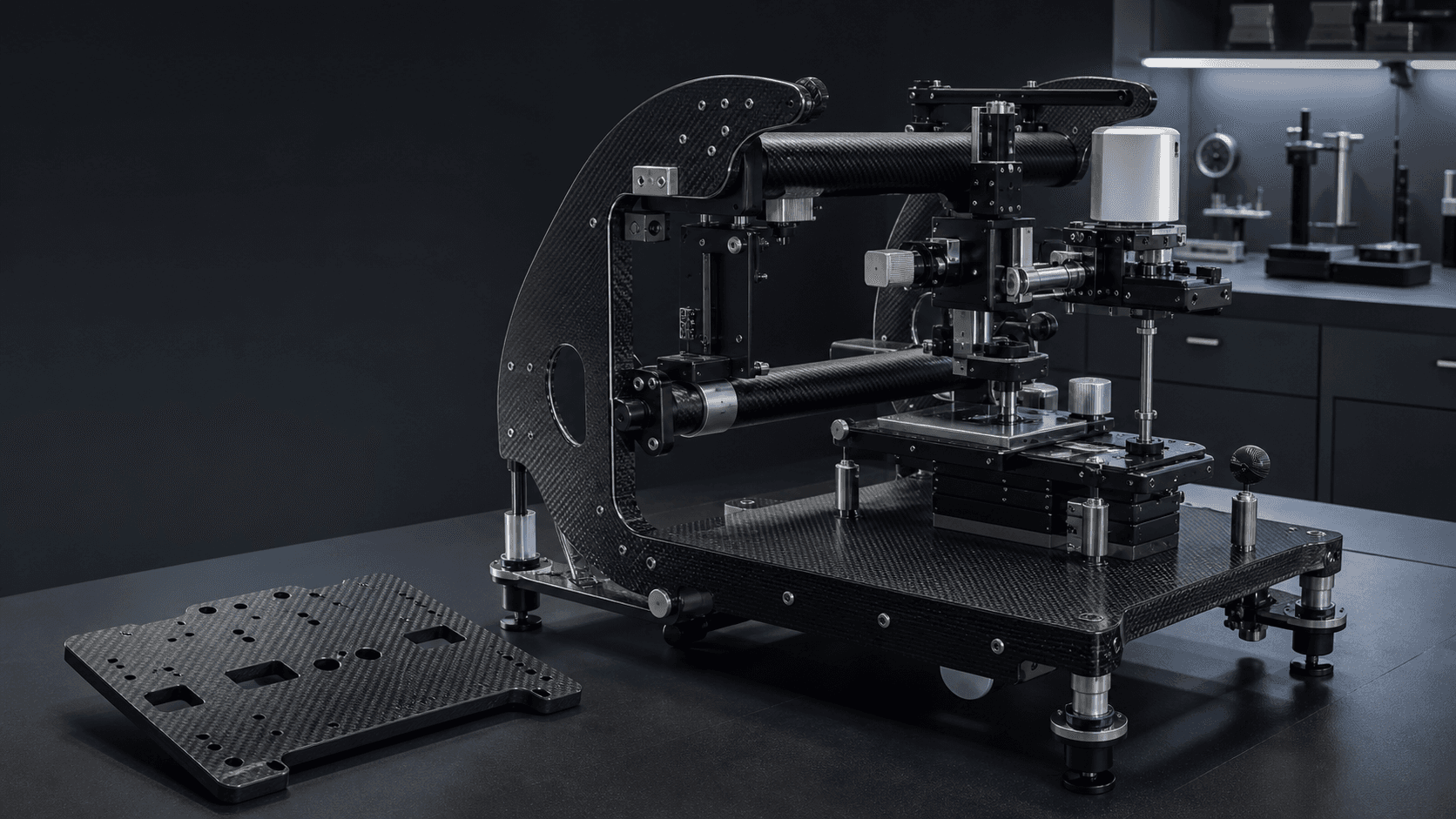

Positioning and imaging equipment
Structural components supporting controlled equipment geometry.
- Positioning equipment components
- Imaging equipment structures
- Instrument supports
- Precision interfaces
Measurement and inspection
Drawing-led parts for precision instruments and inspection systems.
- Measurement equipment
- Inspection equipment
- Precision CNC components
- Custom brackets
04 / Products
Recommended carbon fiber products
Sheets, thin laminates, tubes and CNC parts support different equipment structures.
05 / Capabilities
Medical equipment component capabilities
Dimensions, thickness, hole pattern, tolerance, finish and quantity are reviewed from the drawing.
- 01Precision CNC cutting
- 02Drilling
- 03Milling
- 04Custom hole patterns
- 05Custom dimensions
- 06Surface finish options
- 07Prototype manufacturing
- 08Small-batch manufacturing
06 / Project scope
Engineered to your requirements
Provide the current file together with dimensions, thickness, hole pattern, tolerance, surface finish and application requirements.
We identify missing information for confirmation and do not assume medical compliance or material performance that has not been documented.
Accepted project files
Manufacturing route
Requirement review
Confirm application and drawing revision.
Material review
Evaluate format, thickness and finish.
Machining
Manufacture approved geometry and holes.
Inspection
Check defined dimensions and surface.
Delivery
Protect and ship the finished parts.
07 / Resources
Related technical resources
Review thickness selection, CNC design and file preparation for custom components.
